Inlet Drain Filter Installation Guide

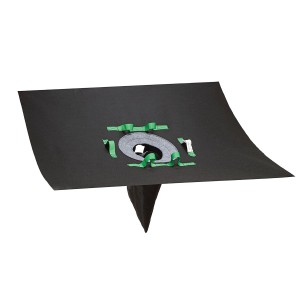

Frameless Inlet Drain Filter Oil & Sediment
#DFI5460OS

Description
Frameless Inlet Drain Filter allows you to stay in compliance with EPA regs and protect waterways from oil and sediment.
- Protect the environment and avoid hefty fines by preventing contaminants from entering waterways
- Drain filter insert protects drains of all sizes in high-traffic areas while filtering oil, sediment and debris from stormwater runoff
- Four-stage filtration process treats more water and removes more oil than basic storm drain filters
- Frameless design can fit small drains of any shape, including shallow drains; designed for easy handling and exceptional filtration
- Easily handle and remove filter with heavy-duty, high-visibility straps
- Overflow ports help prevent blockage during high water flow
- Fits round drains 24" to 48" diameter
- Fits storm drains 24" - 48" W to 24" - 54" L
- Extend above grate and trim product to allow an extra 3" of material
- Pore size is 0.074 mm, 74 microns, 0.0029 inches or 200 sieve
Specifications
Dimensions | - 54" W x 60" L x 17" H |
Shipping Dimensions | - 13.75" W x 13.75" L x 6" H |
Sold as | - 1 per package |
Color | - Black |
Composition | - PET |
Absorbency | - Up to 2.06 gal. per package |
Weight | - 2.5 lbs. |
# per Pallet | - 180 |
Incinerable | - No |
Ship Class | - 175 |
UNSPSC | - 47101514 |

Technical Documents
Regulations and Compliance
40 CFR 122.26 | - Facilities must have a detailed plan in place to prevent illegal discharge of pollutants into waterways. |
There are no known notices or warnings for this product.
